Aluminum Foil Container Machine Smart Line for Food Packing Container Form
C1300 80T Aluminium Foil Container Making Machine Parameter:
Strokes | 35-65 times/min |
Total weight | 11Ton |
Motor Capacity | 9KW |
Voltage | 3-380V/50HZ/ 4 Wires |
Press Dimension | 1.5*2.2*3.3M |
Expansion Shaft | Φ3 inch/6 inch |
Max. Foil Roll Out Dia | Φ1000mm |
Max. Foil Width | 800mm |
Length of Stroke | 220mm(custom-made 200/250/280mm) |
Working Table Dimension | 1300*1000mm |
Max. Mould Dimension | 900*900mm |
Mould Closed Height | 370-450mm |
Slide Area Dimension | 320*145 4-Φ18 |
320*245 4-Φ18 | |
The Whole Production Line Space | 8*3*3.4M |
Air Consumption | 320NT/min |
CHOCTAEK Aluminium Foil Container Making Machine Advantagment:
1.Top Safety and long lifetime,high precision control of feeding step and speed.
2.The replacement of the mould is convenient and easy to change.
3.The machine has memory function for each mould.
4.It’s suitable for large size single cavity,medium and small size multi-cavity moulds.
5.The height of ram is electrically adjustable to satisfied multiple request of different
moulds with diverse shapes and sizes.
6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.
8.The width of the lanes can be adjustable to fit different size containers stacking.
9.CNC machining center, and its machining accuracy is very high.
10. Electric compelling grease lubrication system.
Please feel free to contact with me if you are interested in our machine and mould.
E-mail: essia@choctaek.com
Phone/Whatsapp: 0086-18927205885

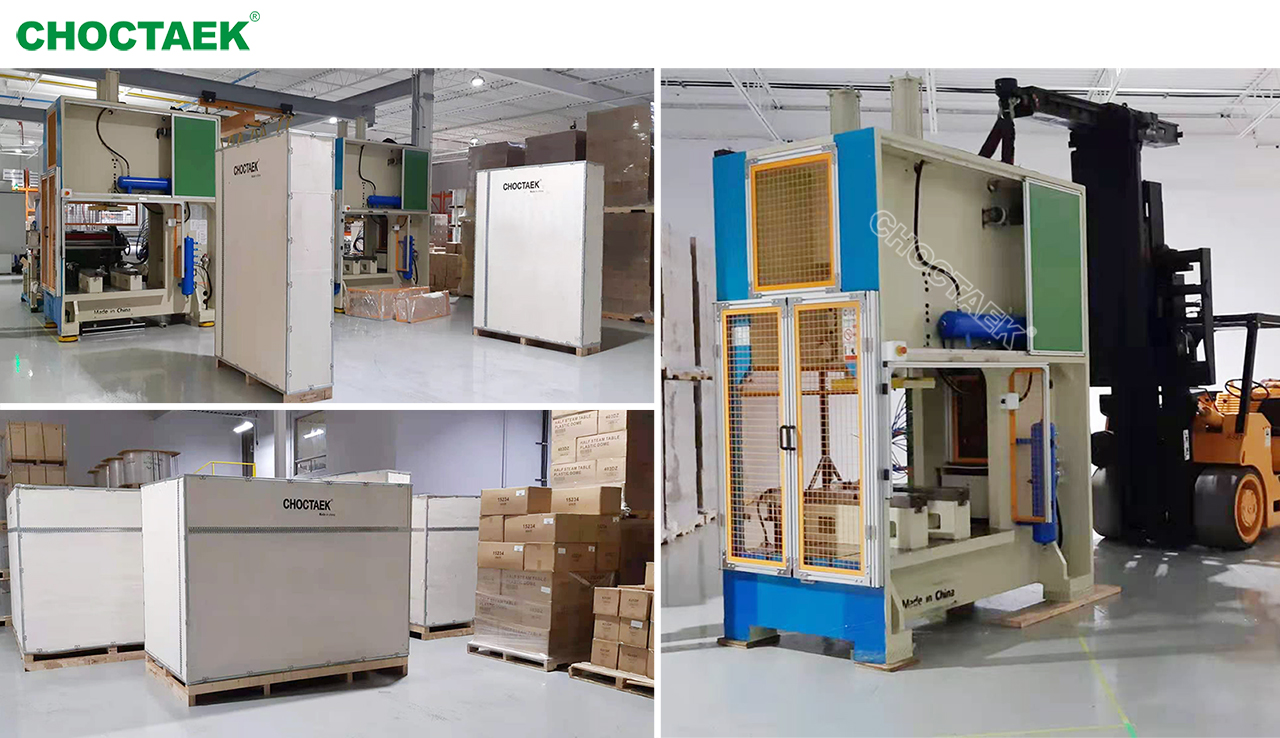

Following pictures from our customer in Canada , he gave very good comments about our CHOCTAEK package.
Why Choose CHOCTAEK
We developed and produced 2300 sets of aluminum foil container moulds from 2003 to August 2021
Technical Team
- We have a senior technical team (technicians have worked in our company for more than 10 years).
Processing the mould in CHOCTAEK
We have 8 sets of CNC machines, low speed wire cutting machines and other equipment, so we can control the accuracy of the mold very well.
Quality Control
We have our testing room to test the spare part.
