Alu Foil Food Container Making Machinery for Packaging

Short Description:

Condition:New

Application: Producing aluminum foil container

Automatic Grade: Automatic / Semi automatic

Driven Type: Electric and Pneumatic

Key Selling Points: After-sale service within 24H

Model: C1300 (80T)

Max. Width of Roll:1050mm

Max. Unwind Roll Diameter:700mm

Feeding Speed:0-35m/min

Feeding Length:20-999mm

Feeding Accuracy:±0.3

Working Voltage:380/220V option

Total power:15kw

Guarantee: 12 month

Port: Guangzhou, Shenzhen








Product Detail

Product Tags

Professional Team

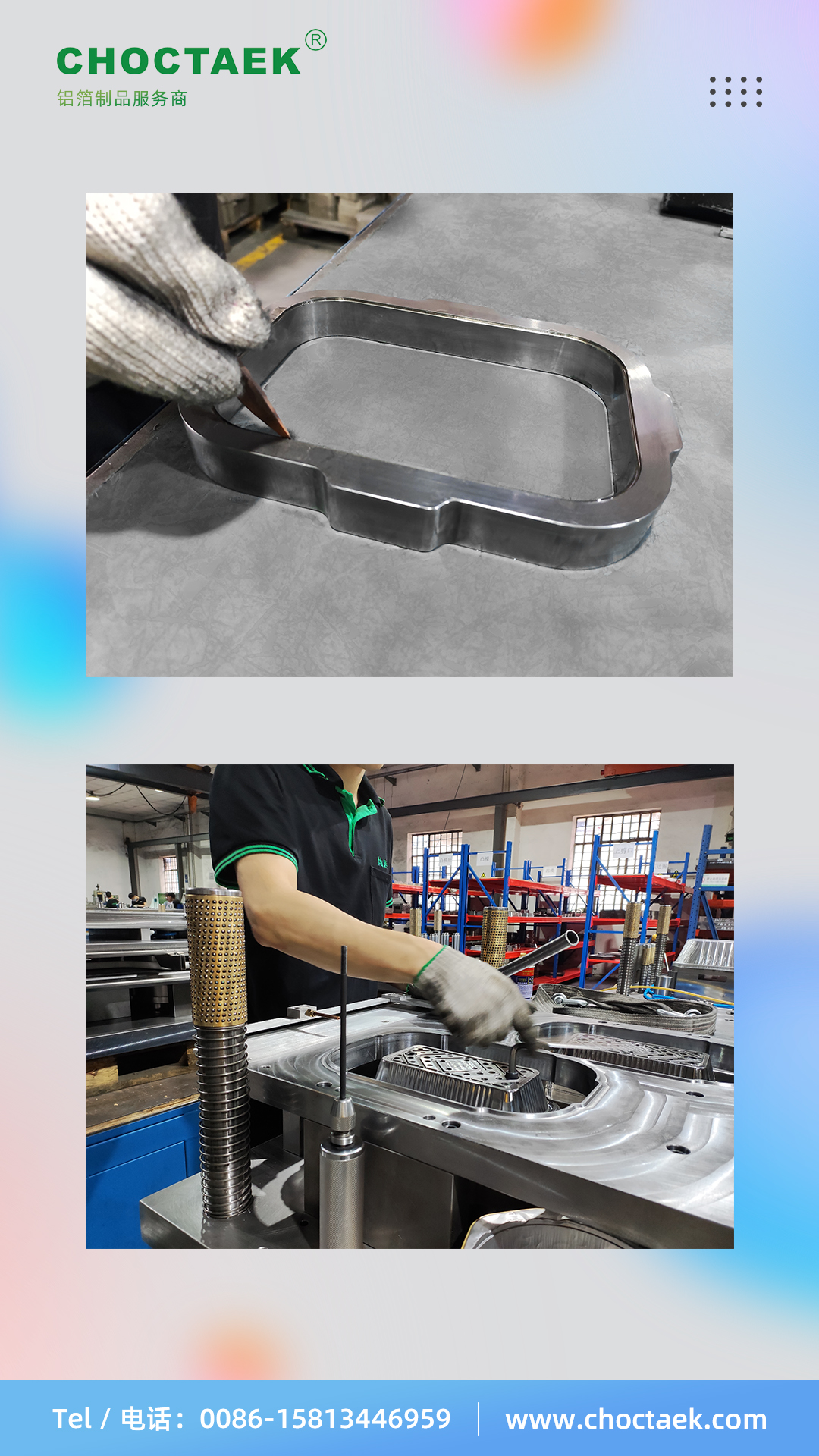

CHOCTAEK MOULD ADVANTAGES:



1. In production capacity: first, CHOCTAEK imported 8 CNC machines and 3 WEDM machine from Japan, so we processing the main parts of moulds by ourselves.

   The precision and quality of mould can be controlled very well by ourselves.



2. The mould have more than 30 different procudure and almost making in our factory.

















微信图片_20230316162054

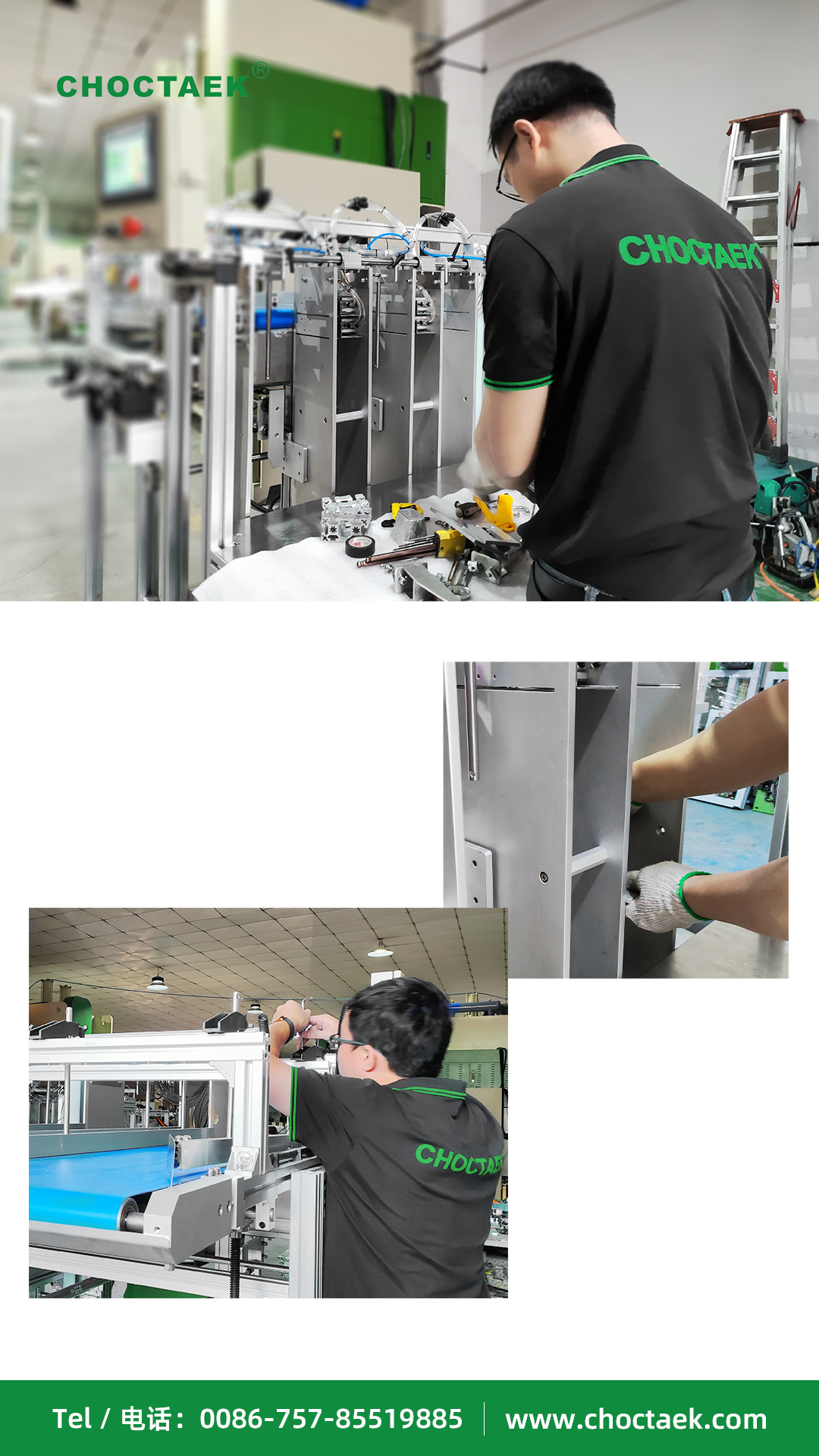

Machine workshop

80T Aluminium Foil Container Making Machine

CHOCTAEK MACHINE ADVANTAGES:



1. CHOCTAEK Team: We have 10 top engineers who worked in CHOCTAEK for more than 10 years.

2.In design, CHOCTAEK has designing team, headed by our boss. They always keep on leaning and will give the best design to customers to improve the quality, stronger and appearance.

3. The whole machine adopts programmable controller as the control system, simple parameter setting, centralized control, automatic production. 4. The feeding system adopts step control, which can be set arbitrarily in the range of 20-999mm.

4. Automated production, in processing, feeding, pressing and product blowing are automated.

5. CHOCTAEK machine work stable and easy to operate, the normal speed is from 40 to 70 strokes per minute (it depends on container size and shape); and our machine has enough big working stable is 1300*1000mm for big model machine.











80T Aluminum Foil Container Making Machine Technical


Total Production Line Power        30KW(Continue production power 12KW)
Work Voltage 380V, 50/60Hz, 3phase, 5wire
Total Production Line Dimension 7100x2800x3600mm
Air pressure and quantity 0.6〜0.8Mpa, 0.4m3/min.
PLC Inverter control system Mitsubishi System, Japan
主图6

Contact us

We will offer the whole solution of aluminum foil container making if you are interested in.

Email: essia@choctaek.com

Mob & WhatsApp: 0086 18927205885
